Butt Weld Fittings

At AK Steel (India), we are a leading manufacturer and stockist of high-quality Butt Weld Pipe Fittings used for critical piping applications. Our product range includes Elbows, Tees, Reducers, Caps, Stub Ends, and Crosses, available in seamless and welded types. Designed for leak-proof and permanent piping joints, our fittings are extensively used in Oil & Gas, Petrochemical, Chemical Processing, Power Plants, and Water Treatment Industries.

Manufactured using premium-grade Stainless Steel, Carbon Steel, Alloy Steel, and Duplex Alloys, all fittings are produced in accordance with international standards such as ASME B16.9, MSS-SP-43, and ASTM A403/A234. As an ISO 9001:2015 certified company, our fittings undergo strict quality testing including Hydro Testing, PMI Testing, and Radiography to ensure dimensional accuracy, corrosion resistance, and high mechanical strength. We maintain a ready stock for immediate delivery.

Materials: SS 304/316L/310, Alloy Steel, Carbon Steel, Duplex.
Standards: ASME B16.9, B16.28, MSS-SP-43, ASTM A403/A234.
Types: Elbow, Tee, Reducer, Cap, Stub End, Cross.

Manufacturing: Seamless, Welded, Fabricated.
Quality: EN 10204 3.1 Certified, 100% PMI & Hydro Tested.
Size Range: ½" to 48" (DN15 to DN1200).

Specification Table of Butt Weld Fittings

Product Name	Elbow (Long/Short Radius), Equal Tee, Reducing Tee, Concentric Reducer, Eccentric Reducer, End Cap, Stub End, Cross
Stainless Steel	Grades: 304, 304L, 316, 316L, 310S, 321, 347, 904L Standard ASTM A403 WP304/304L, WP316/316L
Alloy Steel	Grades: ASTM A234 WP1, WP5, WP9, WP11, WP22 Applications: High Temp & High Pressure Services
Carbon Steel	Standard Grades: ASTM A234 WPB, WPC Use: Refineries, Pipelines, Petrochemical Plants
Duplex & Exotic	Duplex 2205, Super Duplex 2507, Inconel 600/625, Monel 400, Hastelloy C276
Size Range	½" to 48" (DN15 – DN1200) \| Schedules: SCH 10 to SCH 160, XS, XXS
Standards	ASME B16.9, ASME B16.28, MSS-SP-43, DIN 2605, EN 10253
Types	Seamless, Welded, Cold Formed, Hot Formed, Fabricated
Finish	Black, Pickled, Shot Blasted, Polished (SS)

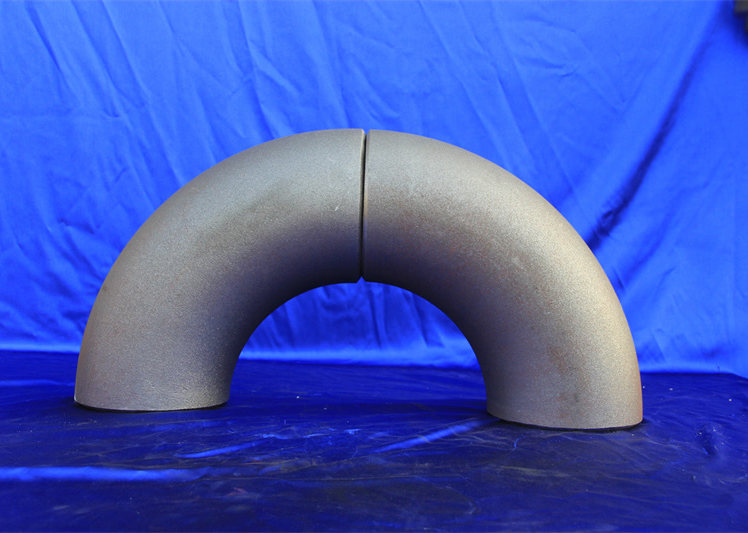

Elbows (LR & SR)

Used to change flow direction. Available in Long Radius (1.5D) for efficiency and Short Radius (1D) for tight spaces. 45°, 90°, and 180° bends.

Angles45/90/180

Radius1D / 1.5D

StdASME B16.9

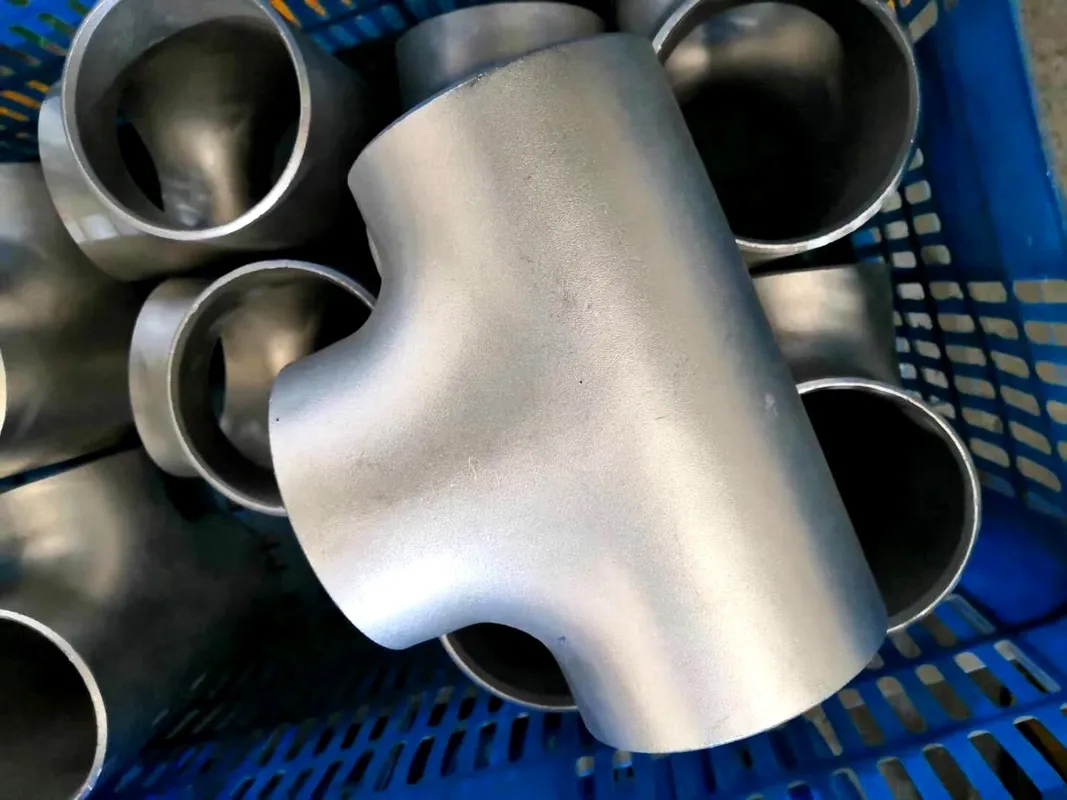

Pipe Tees

Used for 90° branching. Equal Tees have the same branch diameter, while Reducing Tees have a smaller branch outlet for distributing flow.

TypeEqual/Red

UseBranching

MatCS / SS

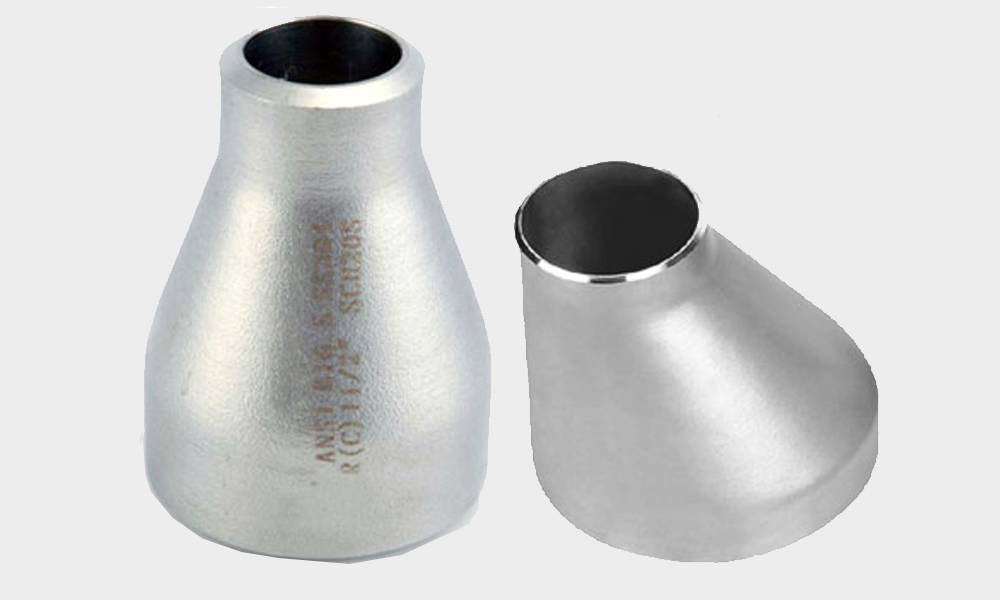

Pipe Reducers

Connects different pipe sizes. Concentric aligns centerlines (vertical runs), while Eccentric has a flat side (horizontal pump suction).

VarCon / Ecc

FlowTransition

MakeSeamless

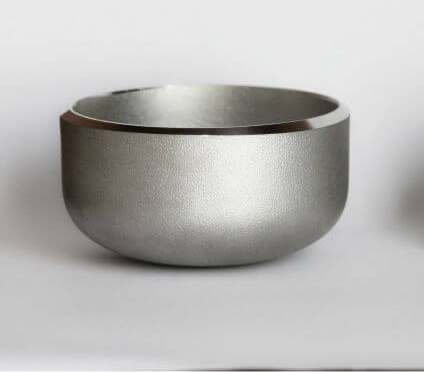

Pipe End Cap

Welded to the open end of a pipe to seal it permanently. Available in elliptical or hemi-spherical shapes for high-pressure durability.

FuncSealing

ShapeEllipsoid

FitWeld

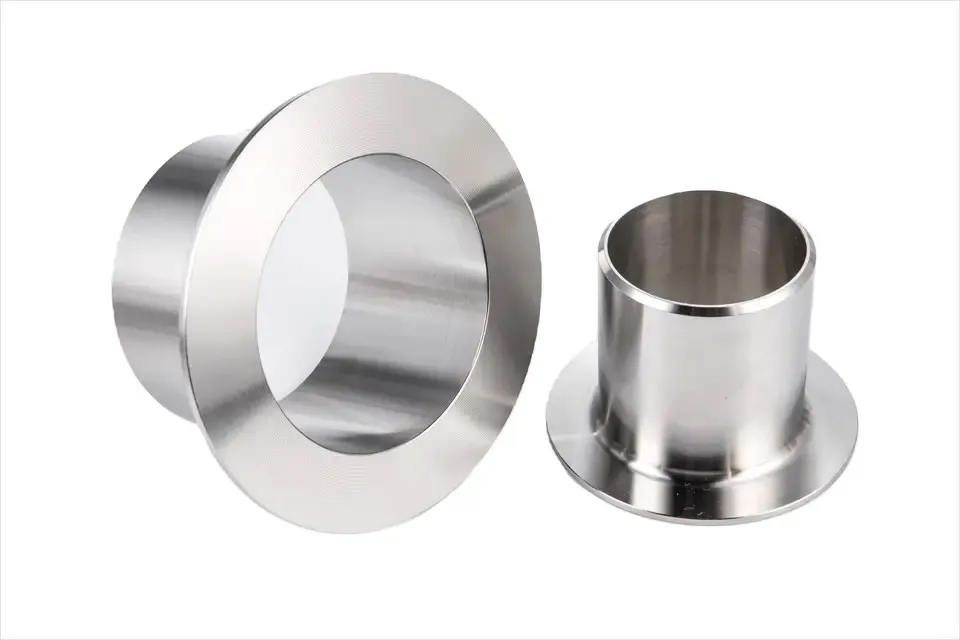

Stub End

Used with a Lap Joint Flange. The stub is welded to the pipe, while the flange remains loose behind it, allowing easy bolt alignment.

FlangeLap Joint

CostEfficient

TypeShort/Long

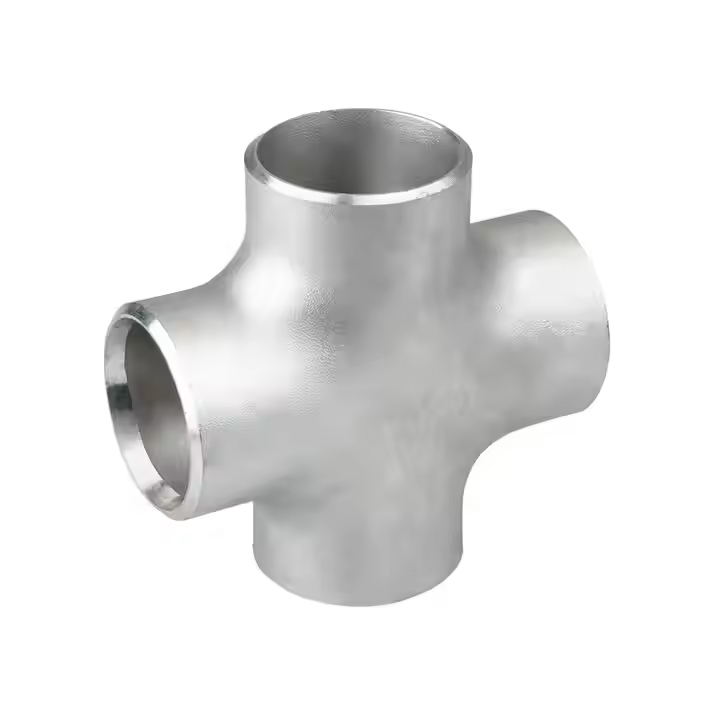

Pipe Cross

A four-way fitting used to distribute flow in four directions. Used in fire sprinkler systems and complex distribution headers.

Way4-Way

PressReduced

AppSprinkler
