Threaded Rods

Nuts

Industrial Threaded Rods & Stud Bolts

AK Steel (India) is a premier manufacturer and stockist of high-performance Threaded Rods and Engineering Studs, designed for critical fastening in the oil, gas, and construction sectors. Our product range includes Full Threaded Rods (continuous thread), Stud Bolts for high-pressure flanges, and Tap End Studs for machined engagement. We manufacture these fasteners in a wide spectrum of materials, including Stainless Steel (304, 316), High Tensile Alloy Steel (ASTM A193 B7), and Carbon Steel, ensuring superior load-bearing capacity and corrosion resistance.

Our manufacturing capabilities allow us to produce studs and rods with precise thread geometry, ensuring a perfect interference fit or free-running fit as required. We specialize in Cut-to-Length services, providing custom sizes from M6 to M100. All products are manufactured in strict compliance with DIN 975, DIN 976, and ASTM A193 standards. As an ISO 9001:2015 certified company, we guarantee that every batch is hardness-tested and supplied with EN 10204 3.1 Material Test Certificates (MTC) for full traceability.

  • Types: Full Thread Rod, Stud Bolt (Flange), Tap End Stud (DIN 938/939).
  • Materials: SS 304/316, Alloy Steel B7/B16, Mild Steel 4.6/8.8.
  • Standards: DIN 975, DIN 976, ASTM A193, & ASME B18.31.2.
  • Finishes: Zinc Plated, Black Oxide, PTFE (Xylan), & Hot Dip Galvanized.
  • Lengths: 1m, 2m, 3m bars or Precision Cut sizes (Studs).
  • Size Range: M6 to M100 (1/4" to 4" Diameter).

Specification table of Threaded Rods

Product Name
1. Full Threaded Rod (Continuous Thread / Studding)
2. Stud Bolt (Fully threaded for Flanges)
3. Tap End Stud (Short thread one side, Long thread other side)
Stainless Steel
Grades: AISI 202, 304, 304L, 316, 316L, 310S, 321, 904L
Standard ASTM A193 B8, B8M (Class 1 & 2)
Alloy Steel (Studs)
High Temp: ASTM A193 Gr. B7, B7M, B16
Low Temp: ASTM A320 Gr. L7, L7M
Carbon Steel
Grades: 4.6, 4.8, 5.8 (Low Carbon), 8.8, 10.9 (High Tensile)
Standards
Rods: DIN 975, DIN 976
Studs: ASTM A193, ASME B18.31.2
Tap End: DIN 938 (1d), DIN 939 (1.25d)
Dimensions
Diameter: M6 – M100 (1/4" – 4")
Length: Cut to specific project requirements
Threads
Metric (Coarse/Fine), UNC, 8UN (for large diameter B7 studs), UNF, BSW
Finish / Coating
Self Color, Zinc Plated (Blue/Yellow), Hot Dip Galvanized (HDG), PTFE/Xylan (Blue/Green), Cadmium

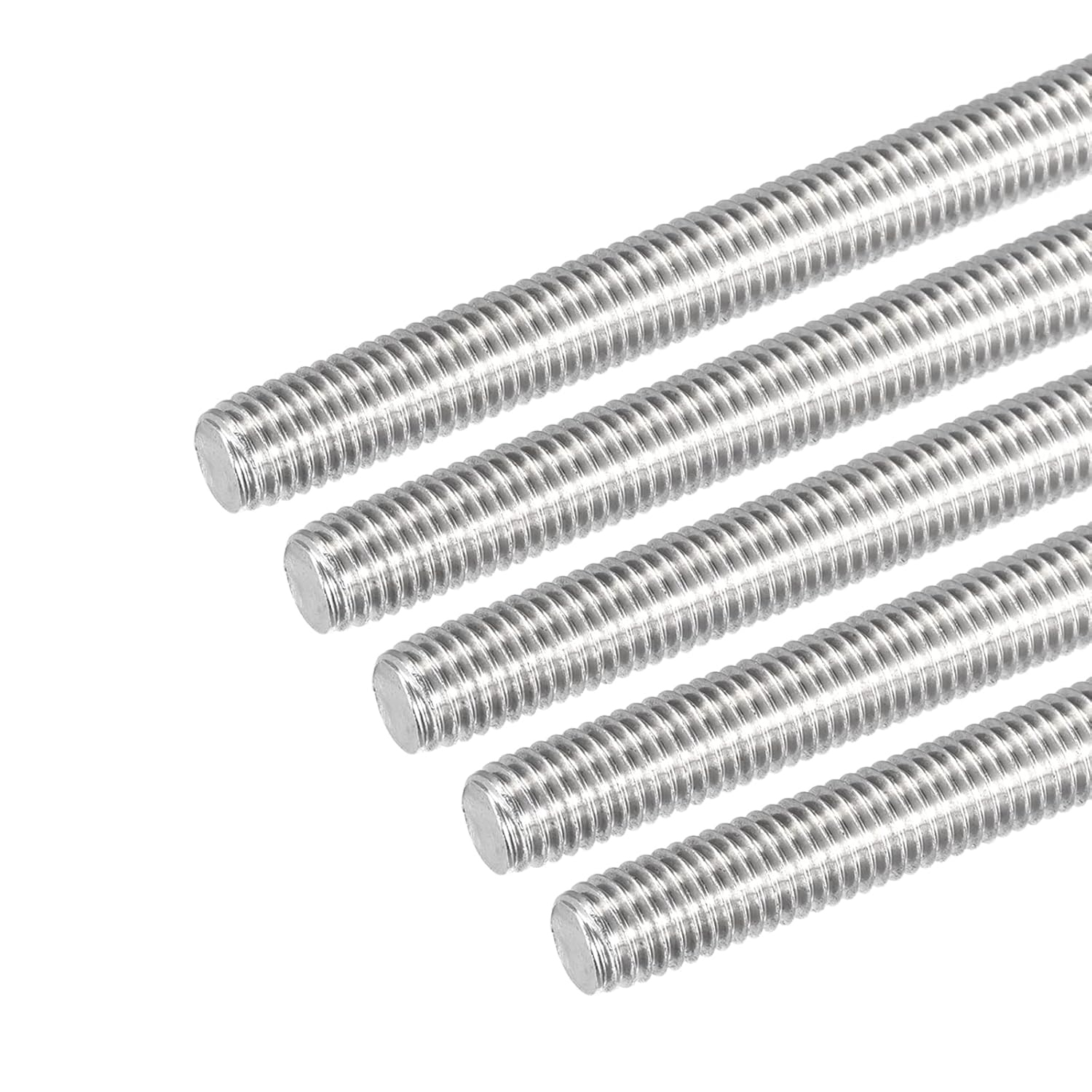

Full Threaded Bolts

Full Threaded Bolts

Continuous threaded rods (Studding) with no unthreaded shank. Ideal for general fastening, suspending pipework, and stabilizing structures. Available in cut-to-length sizes.

ThreadContinuous
LengthCustom Cut
StdDIN 975

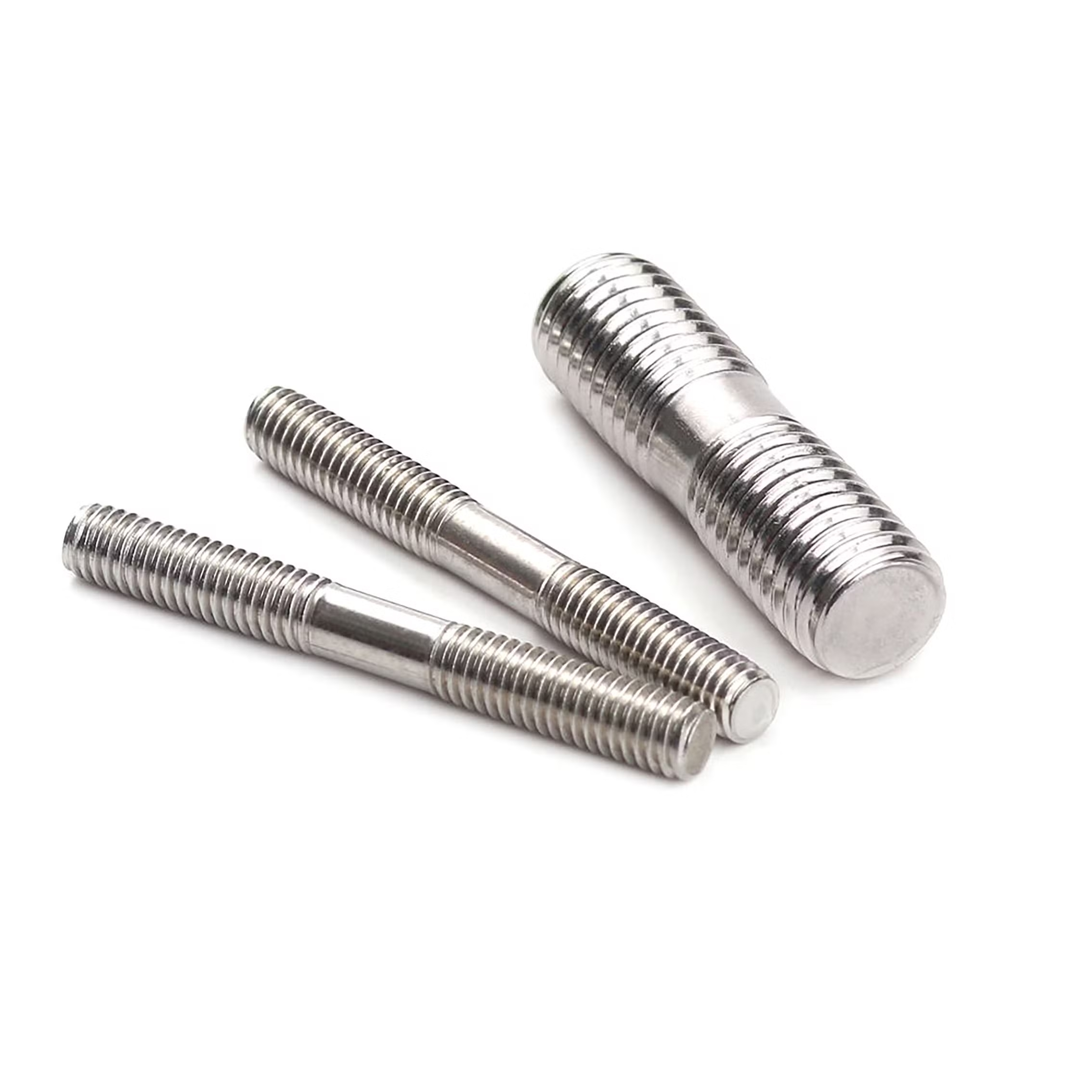

Stud Bolts

Stud Bolts

High-tensile fasteners designed specifically for high-pressure flange connections in pipelines. Manufactured to ASTM A193 B7 specs for extreme heat and pressure resistance.

GradeASTM A193
UseFlanges
StrengthHigh Tensile

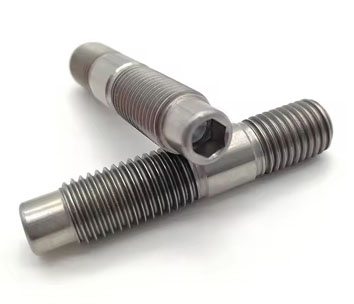

Tap End Bolts

Tap End Bolts

Double-ended studs with a short "tap" thread for screwing into a machined hole and a longer "nut" thread for clamping. Used in heavy machinery and engine assembly.

DesignDual Thread
FitMachined
TypeInterference
