Forged Fittings
Forged Fittings
At AK Steel (India), we manufacture and stock a wide range of high-performance Forged Pipe Fittings designed for high-pressure piping applications. Our range includes Socket Weld and Threaded (Screwed) fittings such as Elbows, Tees, Couplings, Unions, Caps, Plugs, Bosses, Crosses, and Outlets (Olets). Engineered using premium-grade raw materials, our forged fittings ensure exceptional durability, leak-proof connections, and long service life in demanding environments.
All forged fittings are produced in accordance with global standards including ASME B16.11, MSS-SP-79, and ASTM A182/A105. As an ISO 9001:2015 certified company, we conduct rigorous quality checks such as Hydro Testing, Dimensional Inspection, Hardness Testing, and PMI to ensure superior strength and corrosion resistance. With ready inventory of Class 2000, 3000, and 6000 fittings, we ensure immediate dispatch for urgent project needs.
Specification Table of Forged Fittings
|
Product Name
|
Socket Weld & Threaded Elbow, Tee, Coupling, Half Coupling, Union, Plug, Cap, Boss, Cross, Olet (Sockolet, Threadolet, Weldolet) |
|
Stainless Steel
|
Grades: 304, 304L, 316, 316L, 310S, 321, 347
Standard ASTM A182 F304/304L, F316/316L |
|
Alloy Steel
|
Grades: ASTM A182 F5, F9, F11, F22
High Temperature & High Pressure Applications |
|
Carbon Steel
|
Grades: ASTM A105, A350 LF2 (Low Temperature)
Use: Refineries, Petrochemical, Oil & Gas |
|
Duplex & Exotic
|
Duplex 2205, Super Duplex 2507, Inconel 600/625, Monel 400, Hastelloy C276 |
|
Size Range
|
1/8" to 4" | Classes: 2000, 3000, 6000, 9000 |
|
Standards
|
ASME B16.11, MSS-SP-79/83/95/97, ASTM A182/A105, BS3799 |
|
Types
|
Socket Weld (SW), Threaded (NPT/BSPT/BSP), Forged, Heat Treated |
|
Finish
|
Black, Galvanized, Pickled, Polished (Stainless Steel) |

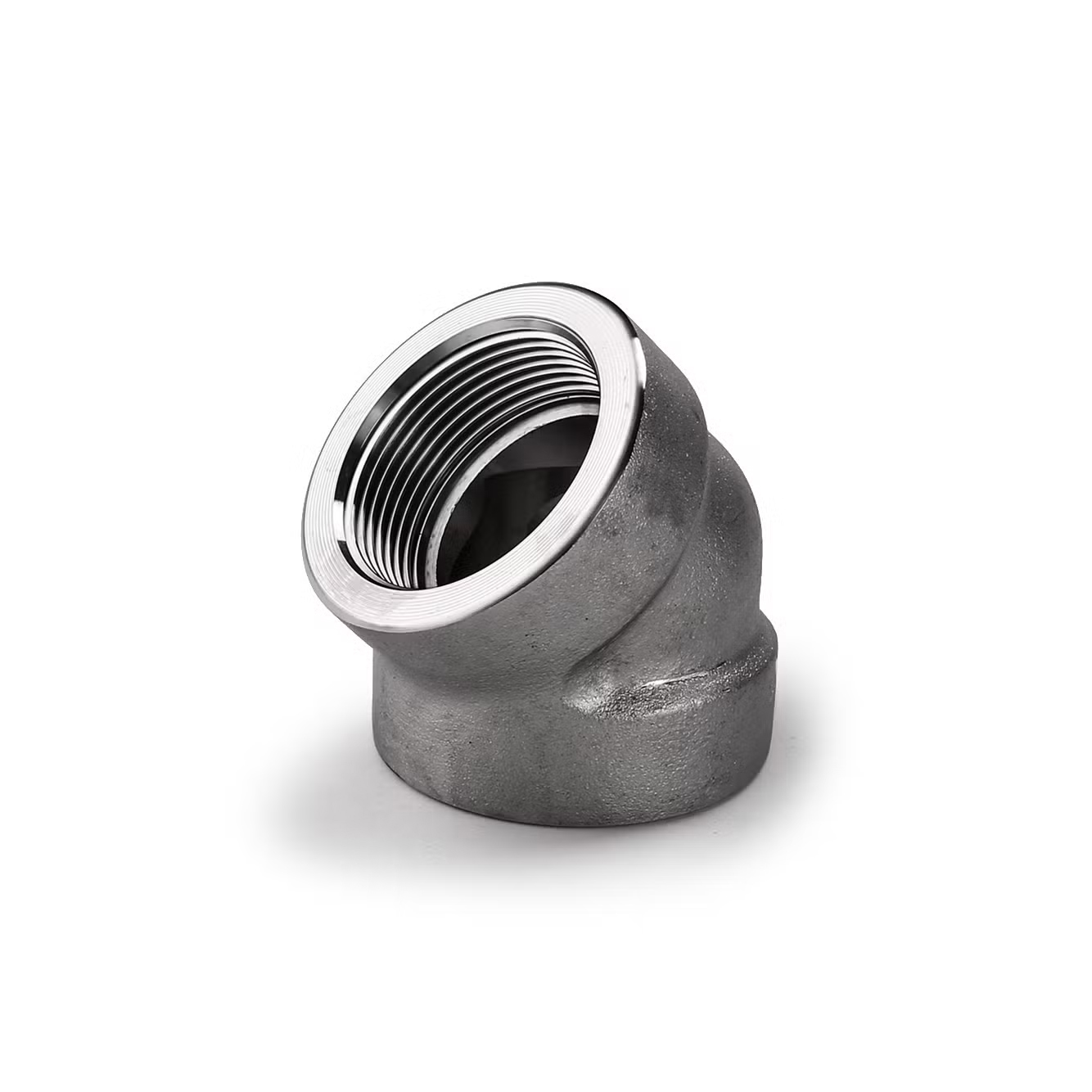

Forged Elbows
High-pressure fittings for changing flow direction in small bore piping. Available in 45° and 90° angles with Socket Weld (SW) or Threaded (NPT/BSP) ends.
Angle45° / 90°
Class3000# / 6000#
StdASME B16.11

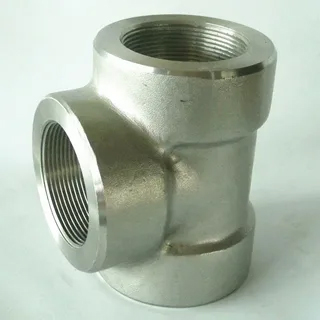

Forged Tees
Robust T-shaped fittings for branching flow. Available as Equal Tee or Reducing Tee. Designed for high-pressure steam and chemical lines.
TypeBranching
EndSW / SCRD
MatA105/F304

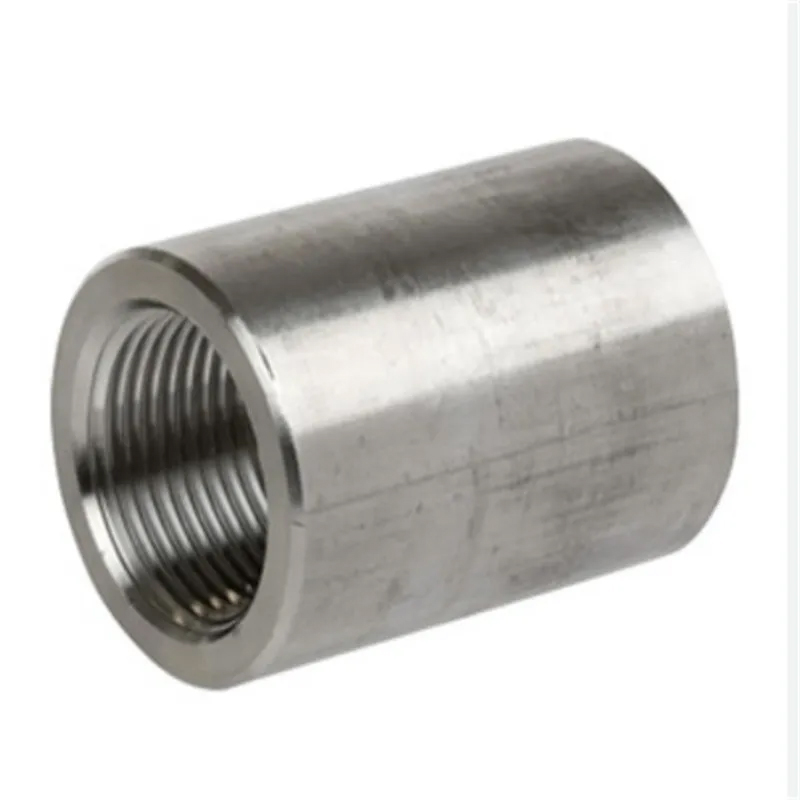

Couplings
Used to connect two lengths of pipe or create a branch outlet (Half Coupling) on a vessel/header. Available in Full and Half sizes.
JoinPipe-to-Pipe
VarFull / Half
RatingHigh Temp

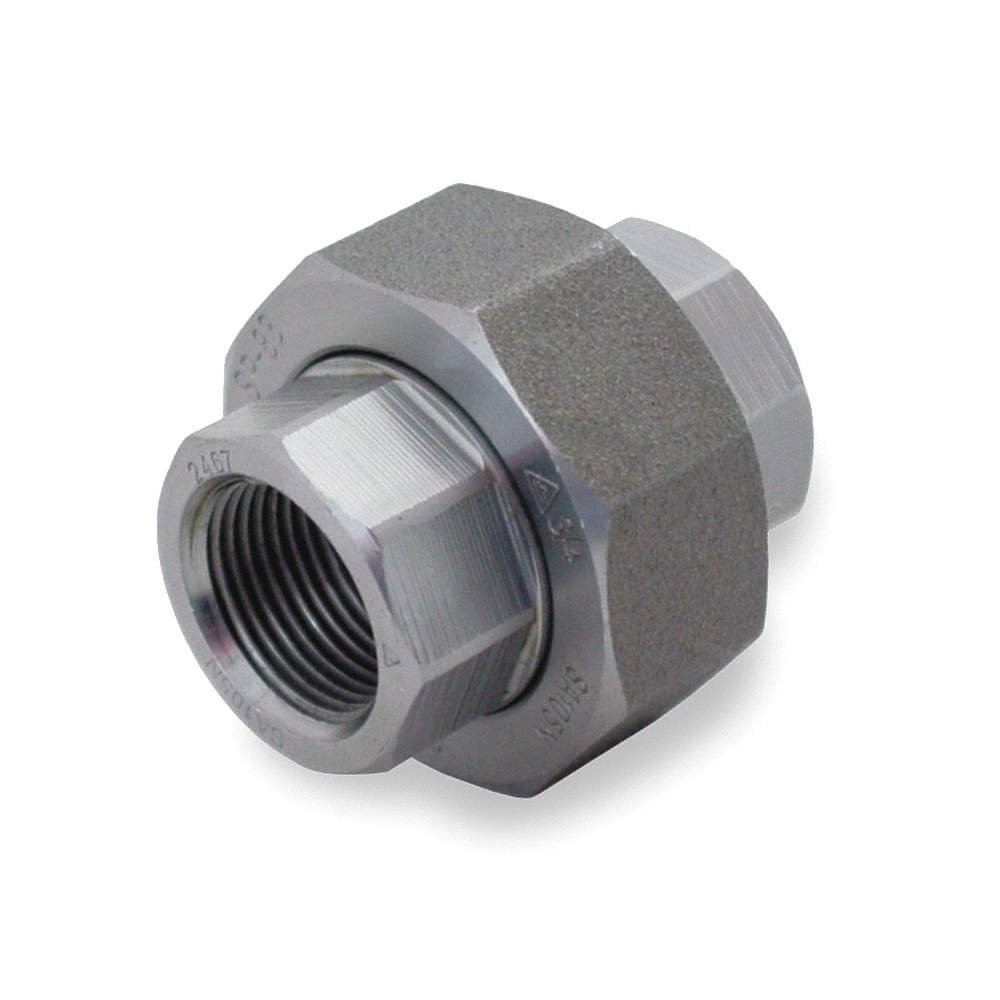

Pipe Unions
A three-part fitting designed for quick disconnection of pipes for maintenance or replacement without cutting the pipe. Conforms to MSS SP-83.
UseMaintenance
JointDetachable
SealLeak Proof

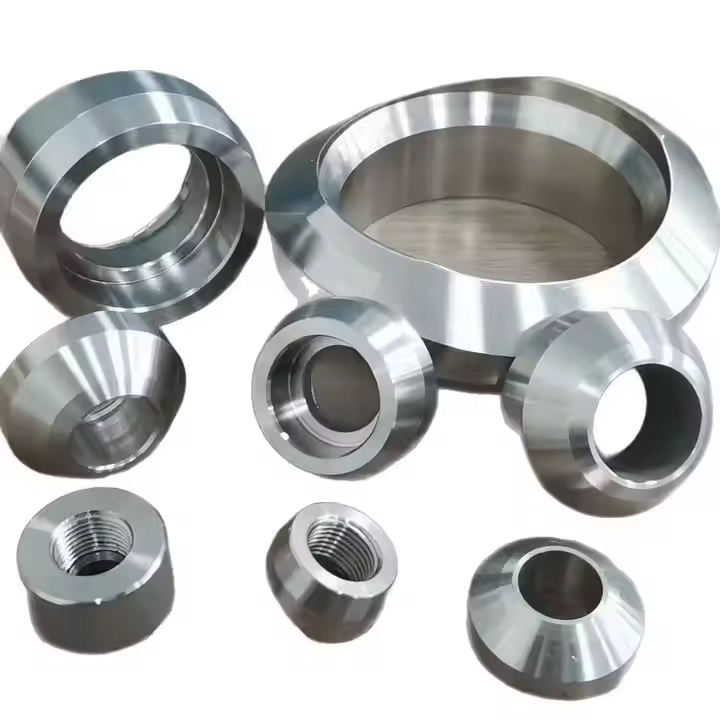

Branch Olets
Reinforced fittings for branching flow from a larger run pipe. Includes Weldolet (Butt Weld), Sockolet (Socket Weld), and Threadolet.
TypeReinforced
VarWeld/Sock
StdMSS SP-97

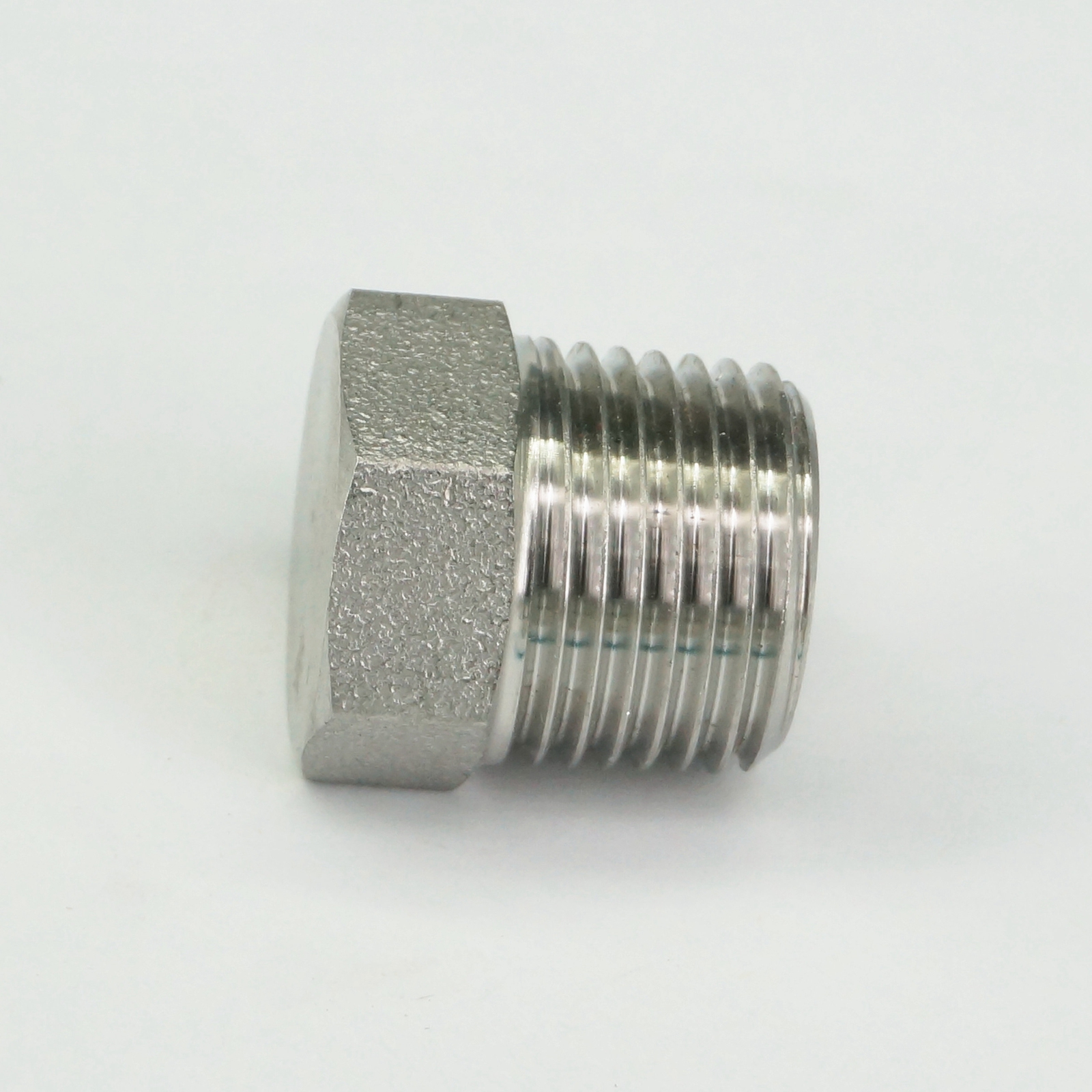

Forged Plugs
Used to seal the threaded end of a pipe fitting or valve. Available in Hex Head, Round Head, and Square Head designs for secure isolation.
FuncSealing
HeadHex/Sq
PressHigh

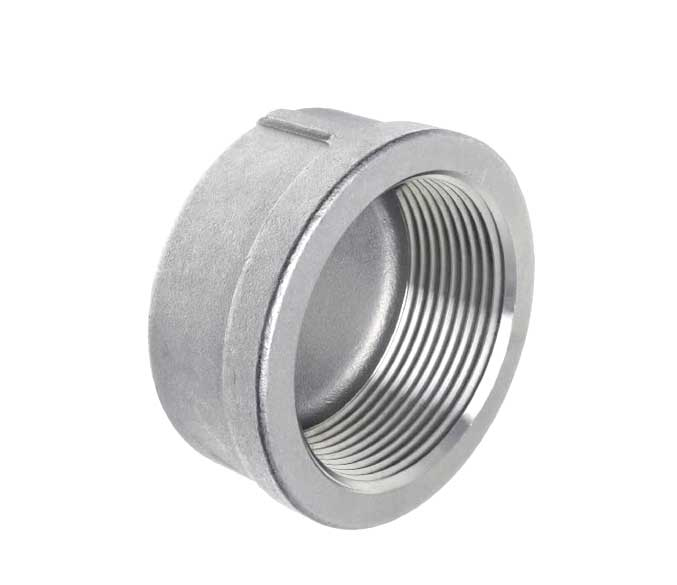

Forged Caps
Protective cover welded or screwed onto the pipe end to block flow. Heavier and more robust than standard butt weld caps for high-pressure lines.
TypeSW / NPT
BodyForged
MatAlloy/SS

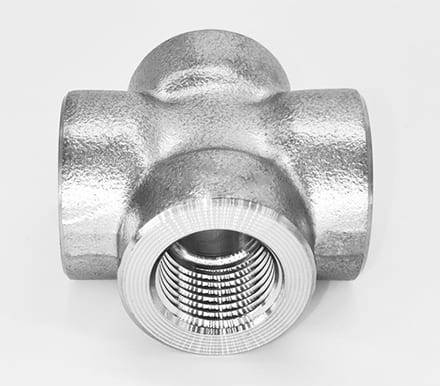

Forged Cross
A four-way forged fitting for distributing flow in four directions. Used in complex hydraulic and pneumatic instrument lines.
Way4-Way
FlowMulti
UseHydraulics
